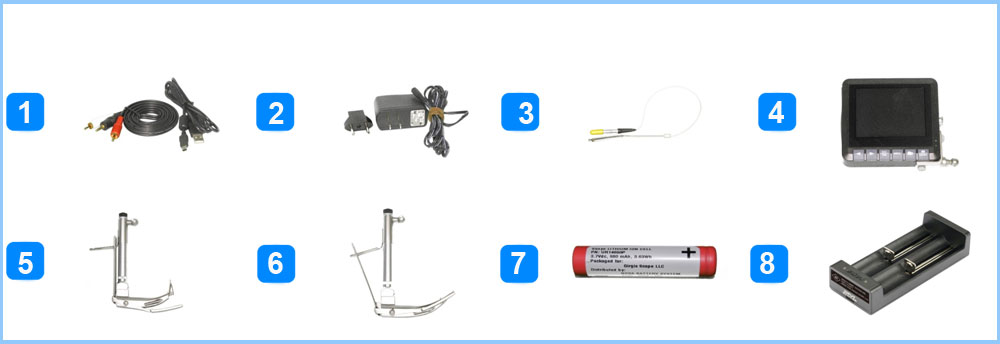

# | Name | Function |
---|---|---|
1 | A\V cables and Mini-B USB | The audio and video cable is for displaying externally the produces images from the camera module on a larger screen for users. |
2 | Charging adaptor | (Includes international adaptor) charges internal rechargeable battery for DVR module. |
3 | 3.5 mm Camera module | Girgis Scope Video DBL camera module is designed to the placed inside of the secondary movable handle for optimal viewing angle. |
4 | DVR | The digital video recorder allows user to take pictures and videos of procedure for later viewing and teaching purpose along with giving user a direct view of laryngeal opening. |
5 | MAC 3 or4 scope (closed) | Designed to aid in tracheal intubation procedure by direct visualization of laryngeal anatomy in closed position. |
6 | MAC 3 or 4 scope (open) | Designed for more difficult intubation by indirect visualization through video monitor in open position. |
7 | SANYO Lithium Ion Battery UR14650P | Rechargeable 3.7Vdc battery specifically designed for GirgisScope Video DBL. 980 mAh 3.63 Wh |
8 | Handle battery AC/DC charger power supply: | Xtar Model number MC2 INPUT: 5V1.0A OUTPUT: 4.2V2*0.5A |
